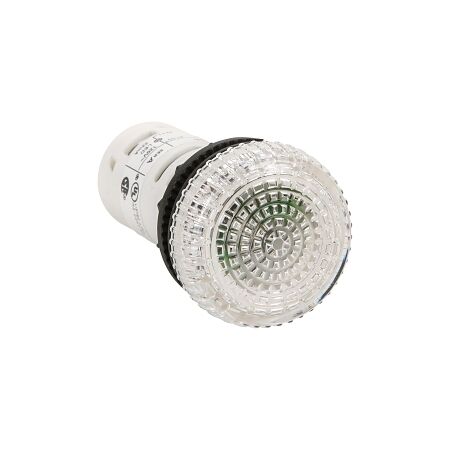

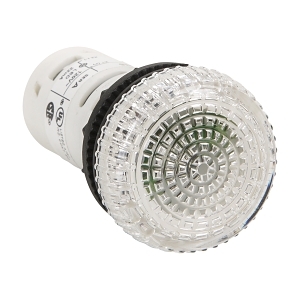

Product Name/Title: Sprecher and Schuh D7 Pilot Light Monolithic 22.5 mm Clear Integrated LED 240V AC
Brand: NHP
SKU: D7DP7N7
Alternatively Known As: LED Indicator Light, Monolithic Pilot Light, 22.5mm Pilot Light
- Voltage Type: AC
- Rated Current: 0.02 A
- Type of Electric Connection: Screw connection
- Number of Indicator Lights: 1
- Lamp Power: 1 W
- Operating Voltage: 240 V
- Colour Lens: Colourless
- Degree of Protection: IP65/IP66
- Material Front Ring: Plastic
- With Light Source: Yes
- Construction Type Lens: Round
- Max Shock Acceleration: 100 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 10 m/s²
- Luminous Intensity: 0 cd
- Hole Diameter: 22.5 mm
- Dimensions (H x L x W): 22.5mm x 30.4mm x 30.4mm
- Weight: 0.1 kg
- Monolithic design with a clear lens for visibility.
- IP65/IP66 rated for protection against dust and water.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Control panels, machinery indicators
- Commercial: Equipment status indication
- Complies with AS/NZS 3000 for electrical installation safety.
- Energy-efficient LED design reduces power consumption.
1 year warranty against manufacturing defects.
The Sprecher and Schuh D7 Pilot Light Monolithic 22.5 mm Clear Integrated LED 240V AC is available now for immediate purchase. Ideal for industrial and commercial applications.
