D7DP3N3

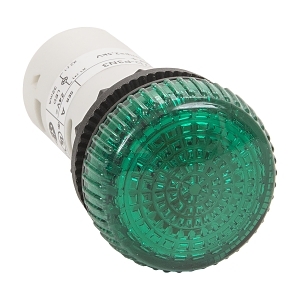

Sprecher and Schuh D7 Pilot Light Monolithic 22.5 mm Green Integrated LED 24V AC DC


$62.00 List price: $82.30
+

Weight: 0.100 kg

Product Name/Title: Sprecher and Schuh D7 Pilot Light Monolithic 22.5 mm Green Integrated LED 24V AC DC

Brand: NHP

SKU: D7DP3N3

Alternatively Known As: 22.5mm Green Pilot Light, Monolithic LED Indicator Light

Technical Specifications
  • Voltage Type: AC/DC
  • Rated Current: 0.03 A
  • Lamp Power: 1 W
  • Operating Voltage: 24 V
  • Colour Lens: Green
  • Degree of Protection: IP65/IP66
  • Material Front Ring: Plastic
  • With Light Source: Yes
  • Construction Type Lens: Round
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Luminous Intensity: 0.01 cd
  • Hole Diameter: 22.5 mm
  • Dimensions (H x L x W): 22.5mm x 30.4mm x 30.4mm
  • Weight: 0.1 kg
Key Features
  • Monolithic design with integrated LED for reliable performance.
  • IP65/IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pilot Light Monolithic 22.5 mm Green Integrated LED 24V AC DC is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable indicator lights.
