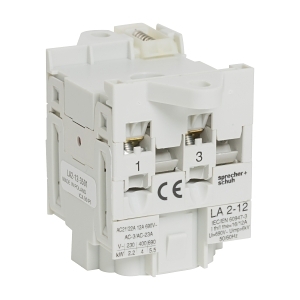

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 1 Pole Changeover with Off 12A Base Mount
Brand: NHP
SKU: LA2123501
Alternatively Known As: Cam Switch, Changeover Switch, Electrical Switch
Technical Specifications
- Rated operation current at AC 15 (230V): 5A
- Rated operation current at AC 15 (400V): 3A
- Rated operation current at AC 22A (690V): 12A
- Rated operation current at AC 22A (220-500V): 12A
- Rated operation current at AC 21A (690V): 12A
- Rated operation current at AC 1 (690V): 12A
- Thermal current (enclosed): 12A
- Thermal current (open): 16A
- Type of electrical connection: Screw connection
- Mounting method: DIN rail
- Material housing: Plastic
- Wire conductor size (rigid cable): 1-2.5 mm²
- Wire conductor size (flex cable): 1-2.5 mm²
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 3
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 59mm x 58mm x 58mm
- Weight: 0.5 kg
Key Features
- 1 pole changeover switch with off position.
- Rated for 12A at 690V AC.
- IP20 rated for protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Equipment switching in various applications
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Durable materials extend product life, reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable electrical control.
