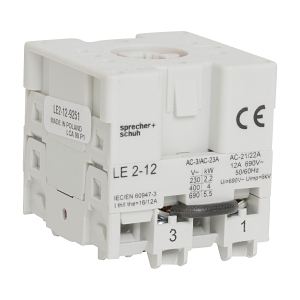

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 1 Pole Stop Start 12A Panel Mount
Brand: NHP
SKU: LE2129251
Alternatively Known As: Cam Switch, L2 Cam Switch, 1 Pole Switch, Stop Start Switch
Technical Specifications
- Rated operation current at AC 15 (230V): 5A
- Rated operation current at AC 15 (400V): 3A
- Rated operation current at AC 22A (690V): 12A
- Rated operation current at AC 22A (220-500V): 12A
- Rated operation current at AC 21A (690V): 12A
- Rated operation current at AC 1 (690V): 12A
- Thermal current (enclosed): 12A
- Thermal current (open): 16A
- Electrical connection type: Screw connection
- Wire conductor size (rigid cable): 1-2.5 mm²
- Wire conductor size (flex cable): 1-2.5 mm²
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 3
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 42mm x 44mm x 42mm
- Weight: 0.5 kg
Key Features
- 1 pole design for efficient operation.
- Rated for 12A at 690V AC.
- Front mounting for easy installation.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery, and equipment
- Commercial: Electrical installations requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules.
Environmental Benefits
- Durable materials extend product life, reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
Non-Returnable & Non-Cancellable
