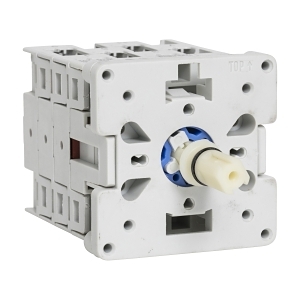

Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Changeover 20A Panel Mount

$274.80 List price: $364.80
+ −
30 Days Return Delivery Options
Weight: 0.500 kg

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Changeover 20A Panel Mount

Brand: NHP

SKU: LE2202503

Alternatively Known As: Cam Switch, Changeover Switch, 3 Pole Switch

Technical Specifications
  • Number of Poles: 3
  • Rated Operation Power at AC 3 400 V: 9 kW
  • Rated Operation Current at AC 15 230 V: 7 A
  • Rated Operation Current at AC 15 400 V: 5 A
  • Rated Operation Current at AC 22A 690 V: 20 A
  • Rated Operation Current at AC 22A 220-500 V: 20 A
  • Rated Operation Current at AC 21A 690 V: 20 A
  • Rated Operation Current at AC 1 690 V: 20 A
  • Thermal Current Enclosed: 20 A
  • Thermal Current Open: 25 A
  • Type of Electrical Connection of Main Circuit: Screw connection
  • Mounting Method: Front mounting
  • Material Housing: Plastic
  • Wire Conductor Size Rigid Cable: 1.5-6 mm²
  • Wire Conductor Size Flex Cable: 1.5-4 mm²
  • Degree of Protection IP Front Side: IP20
  • Mechanical Life Service Cycles: 1,000,000 cycles
  • Number of Switch Positions: 2
  • Operating Temperature: -25-60 °C
  • Dimensions (H x L x W): 55mm x 69.5mm x 55mm
  • Weight: 0.5 kg
Key Features
  • 3 pole changeover design for versatile switching applications.
  • Rated for 20A operation, suitable for various electrical loads.
  • Front mounting for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery control and power distribution
  • Commercial: Equipment switching in various applications
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and electrical installation.
Environmental Benefits
  • Durable materials extend product life, reducing replacement frequency.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Changeover 20A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
