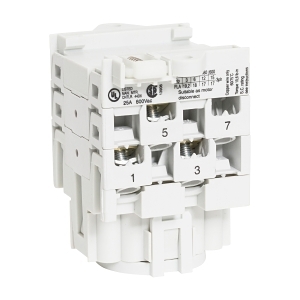

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Off On 25A Base Mount
Brand: NHP
SKU: LA2251783
Alternatively Known As: Cam Switch, L2 Switch, 3 Pole Switch, Base Mount Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 11 kW
- Rated operation current at AC 15 230 V: 8 A
- Rated operation current at AC 15 400 V: 6 A
- Rated operation current at AC 22A 690 V: 25 A
- Rated operation current at AC 22A 220-500 V: 25 A
- Rated operation current at AC 21A 690 V: 25 A
- Rated operation current at AC 1 690 V: 25 A
- Thermal current enclosed: 25 A
- Thermal current open: 30 A
- Type of electrical connection: Screw connection
- Material housing: Plastic
- Wire conductor size rigid cable: 1.5-6 mm²
- Wire conductor size flex cable: 1.5-4 mm²
- Degree of protection: IP20
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 2
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 62mm x 71.5mm x 100mm
- Weight: 0.5 kg
Key Features
- 3 pole design for versatile switching applications.
- Rated for 25A operation, suitable for various electrical loads.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with relevant Australian electrical standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Off On 25A Base Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
Non-Returnable & Non-Cancellable
