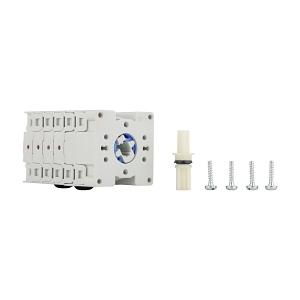

Sprecher and Schuh L2 Cam Switch Switch Body 4 Pole Changeover 12A Panel Mount

$226.50 List price: $300.80
+ −
30 Days Return Delivery Options
Weight: 0.500 kg

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 4 Pole Changeover 12A Panel Mount

Brand: NHP

SKU: LE2122504

Alternatively Known As: 4 Pole Cam Switch, Changeover Switch, Panel Mount Switch

Technical Specifications
  • Number of Poles: 4
  • Rated Operation Power at AC 3 400 V: 4 kW
  • Rated Operation Current at AC 15 230 V: 5 A
  • Rated Operation Current at AC 15 400 V: 3 A
  • Rated Operation Current at AC 22A 690 V: 12 A
  • Rated Operation Current at AC 22A 220-500 V: 12 A
  • Rated Operation Current at AC 21A 690 V: 12 A
  • Rated Operation Current at AC 1 690 V: 12 A
  • Thermal Current Enclosed: 12 A
  • Thermal Current Open: 16 A
  • Type of Electrical Connection: Screw connection
  • Mounting Method: Front mounting
  • Material Housing: Plastic
  • Wire Conductor Size (Rigid Cable): 1-2.5 mm²
  • Wire Conductor Size (Flex Cable): 1-2.5 mm²
  • Mechanical Life Service Cycles: 1,000,000 cycles
  • Number of Switch Positions: 2
  • Operating Temperature: -25 to 60 °C
  • Dimensions (H x L x W): 42mm x 74mm x 42mm
  • Weight: 0.5 kg
Key Features
  • 4 pole changeover design for versatile applications.
  • Rated for 12A operation, suitable for various electrical loads.
  • IP20 rated for protection against solid objects.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery control and power distribution
  • Commercial: Electrical panels and switchboards
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and electrical installation.
Environmental Benefits
  • Durable materials extend product life, reducing replacement frequency.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L2 Cam Switch Switch Body 4 Pole Changeover 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
