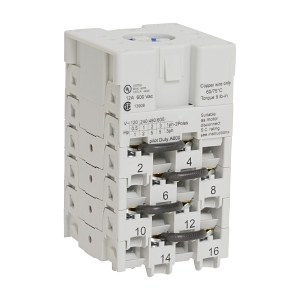

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 4 Pole Changeover with Off 12A Panel Mount
Brand: NHP
SKU: LE2123504
Alternatively Known As: Cam Switch, Changeover Switch, 4 Pole Switch
Technical Specifications
- Rated operation power at AC 3, 400V: 4 kW
- Rated operation current at AC 15, 230V: 5 A
- Rated operation current at AC 15, 400V: 3 A
- Rated operation current at AC 22A, 690V: 12 A
- Rated operation current at AC 22A, 220-500V: 12 A
- Rated operation current at AC 21A, 690V: 12 A
- Rated operation current at AC 1, 690V: 12 A
- Thermal current enclosed: 12 A
- Thermal current open: 16 A
- Type of electrical connection: Screw connection
- Material housing: Plastic
- Wire conductor size (rigid cable): 1-2.5 mm²
- Wire conductor size (flex cable): 1-2.5 mm²
- Degree of protection: IP20
- Mechanical life service cycles: 1,000,000 cycles
- Number of switch positions: 3
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 42mm x 74mm x 42mm
- Weight: 0.5 kg
Key Features
- 4 pole changeover switch with off position.
- Rated for 12A operation.
- Front mounting design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and automation
- Commercial: Electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules and electrical installation.
Environmental Benefits
- Durable materials extend product life, reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L2 Cam Switch Body 4 Pole Changeover with Off 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
