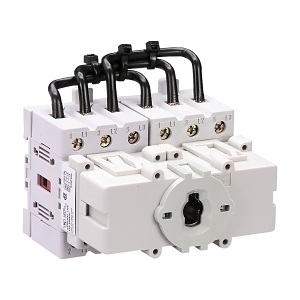

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Changeover 25A Base Mount
Brand: NHP
SKU: LA7253753
Alternatively Known As: L7 Changeover Switch, 3 Pole Switch, Base Mount Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 7.5 kW
- Rated operation current (Ie) at AC 21A 690 V: 25 A
- Rated operation current (Ie) at AC 1 690 V: 25 A
- Thermal current (enclosed): 32 A
- Thermal current (open): 40 A
- Mounting method: DIN rail
- Material housing: Plastic
- Wire conductor size (rigid cable): 1.5-10 mm²
- Wire conductor size (flex cable): 1.5-16 mm²
- Mechanical life service cycles: 200,000 cycles
- Number of switch positions: 3
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 63mm x 59mm x 45mm
- Weight: 0.5 kg
Key Features
- 3 pole changeover switch with a rated operation current of 25A.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment control
- Commercial: Power distribution systems
- General: Any application requiring a reliable changeover switch
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules.
Environmental Benefits
- Durable materials extend product life, reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Changeover 25A Base Mount is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable power control.
Non-Returnable & Non-Cancellable
