LA7403753

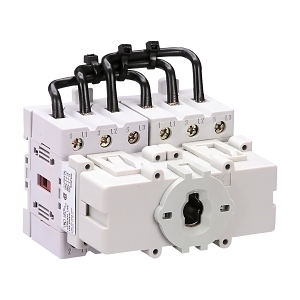

Sprecher and Schuh L7 Switch Body 3 Pole Changeover 40A Base Mount

$408.80 List price: $542.90
+ −
30 Days Return Delivery Options
Weight: 1.500 kg

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Changeover 40A Base Mount

Brand: NHP

SKU: LA7403753

Alternatively Known As: L7 Changeover Switch, 3 Pole Switch, 40A Switch

Technical Specifications
  • Rated operation power at AC 3 400 V: 15 kW
  • Rated operation current (Ie) at AC 21A 690 V: 40 A
  • Rated operation current (Ie) at AC 1 690 V: 40 A
  • Thermal current (enclosed): 50 A
  • Thermal current (open): 63 A
  • Mounting method: DIN rail
  • Material housing: Plastic
  • Wire conductor size (rigid cable): 2.5-16 mm²
  • Wire conductor size (flex cable): 2.5-25 mm²
  • Mechanical life service cycles: 200000 cycles
  • Number of switch positions: 3
  • Operating temperature: -25-60 °C
  • Dimensions (H x L x W): 72mm x 73mm x 54mm
  • Weight: 1.5 kg
Key Features
  • 3-pole changeover switch with a rated operation current of 40A.
  • IP20 rated for protection against solid objects.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution and control systems
  • Commercial: Equipment switching and load management
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Durable materials extend product life, reducing replacement frequency.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L7 Switch Body 3 Pole Changeover 40A Base Mount is available now for immediate purchase. Ideal for industrial and commercial power management applications.

Non-Returnable & Non-Cancellable
