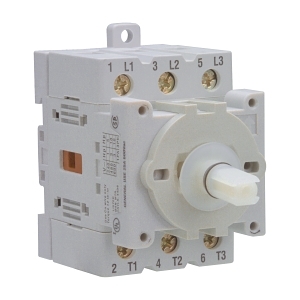

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On 25A Base Mount
Brand: NHP
SKU: LA7251753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Off On Switch
Technical Specifications
- Number of Poles: 3
- Rated Operation Power at AC 3 400 V: 7.5 kW
- Rated Operation Current (Ie) at AC 21A 690 V: 25 A
- Rated Operation Current (Ie) at AC 1 690 V: 25 A
- Ithe Thermal Current (Enclosed): 32 A
- Ith Thermal Current (Open): 40 A
- Mounting Method: DIN rail
- Material Housing: Plastic
- Wire Conductor Size (Rigid Cable): 1.5-10 mm²
- Wire Conductor Size (Flex Cable): 1.5-16 mm²
- Degree of Protection: IP20
- With Zero Off Position: Yes
- Number of Switch Positions: 2
- Operating Temperature: -25-60 °C
- Dimensions (H x L x W): 63mm x 59mm x 45mm
- Weight: 0.5 kg
Key Features
- 3-pole design for reliable load breaking.
- Rated for 25A operation with a robust mechanical life of 200,000 cycles.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Load break applications in various electrical systems
- Commercial: Suitable for use in commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Durable materials extend product life, reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On 25A Base Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
