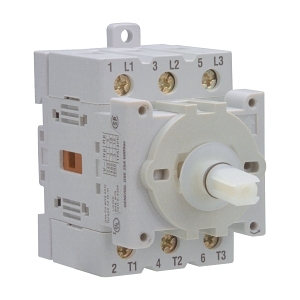

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On 32A Base Mount
Brand: NHP
SKU: LA7321753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Off Load Switch
Technical Specifications
- Rated operation power at AC 3, 400 V: 11 kW
- Rated operation current (IE) at AC 21A 690V: 32 A
- Rated operation current (IE) at AC 1 690V: 32 A
- Thermal current (enclosed): 40 A
- Thermal current (open): 50 A
- Mounting method: DIN rail
- Wire conductor size (rigid cable): 1.5-10 mm²
- Wire conductor size (flex cable): 1.5-16 mm²
- Mechanical life service cycles: 200,000 cycles
- Number of switch positions: 2
- Operating temperature: -25 to 60 °C
- Dimensions (H x L x W): 63mm x 59mm x 45mm
- Weight: 0.5 kg
Key Features
- 3-pole design for effective load management.
- Rated for 32A operation with a robust plastic housing.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Load management in manufacturing facilities
- Commercial: Power control in commercial buildings
- General: Any application requiring a reliable load break switch
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules.
Environmental Benefits
- Durable materials extend product life, reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On 32A Base Mount is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable load management.
