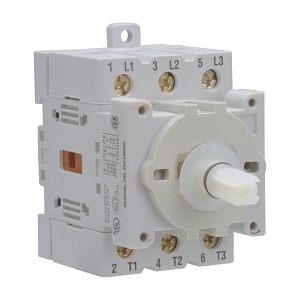

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On 63A Base Mount
Brand: NHP
SKU: LA7631753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Off Load Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 18.5 kW
- Rated operation current (Ie) at AC 21A 690 V: 63 A
- Rated operation current (Ie) at AC 1 690 V: 63 A
- Thermal current (enclosed): 63 A
- Thermal current (open): 75 A
- Mounting method: DIN rail
- Material housing: Plastic
- Wire conductor size (rigid cable): 2.5-16 mm²
- Wire conductor size (flex cable): 2.5-25 mm²
- Suitable for front mounting: No
- With zero off position: Yes
- Number of switch positions: 2
- Operating temperature: -25-60 °C
- Dimensions (H x L x W): 72mm x 73mm x 54mm
- Weight: 1.5 kg
Key Features
- 3-pole design for effective load breaking.
- Rated for 63A operation with a robust mechanical life of 200,000 cycles.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for load break applications in various industrial settings.
- Commercial: Ideal for commercial electrical installations requiring reliable switching.
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules and electrical installations.
Environmental Benefits
- Durable materials extend product life, reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On 63A Base Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
