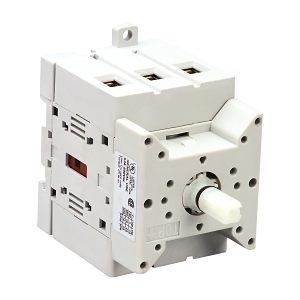

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 100A
Brand: NHP
SKU: LE71001753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Panel Mount Switch
Technical Specifications
- Rated operation power at AC 3 400 V: 37 kW
- Rated operation current (Ie) at AC 21A 690 V: 100 A
- Rated operation current (Ie) at AC 1 690 V: 100 A
- Thermal current (Ithe) enclosed: 100 A
- Thermal current (Ith) open: 120 A
- Number of auxiliary contacts (normally closed): 0
- Number of auxiliary contacts (normally open): 0
- Model: On/Off switch
- Mounting method: Front mounting
- Material housing: Plastic
- Wire conductor size (rigid cable): 4-35 mm²
- Wire conductor size (flex cable): 4-50 mm²
- Degree of protection (IP front side): IP20
- Suitable for front mounting: Yes
- Complete device in housing: No
- With zero off position: Yes
- Mechanical life service cycles: 200000 cycles
- Number of switch positions: 2
- Operating temperature: -25-60 °C
- Dimensions (H x L x W): 90mm x 90mm x 72mm
- Weight: 1.5 kg
Key Features
- 3-pole design for effective load breaking.
- Rated for 100A operation with a robust plastic housing.
- Front mounting method for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for load break applications in various industrial settings.
- Commercial: Ideal for commercial electrical installations requiring reliable switching.
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Durable materials extend product life, reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 100A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
