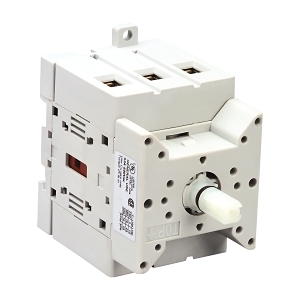

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 32A
Brand: NHP
SKU: LE7321753
Alternatively Known As: Load Break Switch, Off-load Switch, Panel Mount Switch
Technical Specifications
- Number of Poles: 3
- Rated Operation Power at AC 3 400 V: 11 kW
- Rated Operation Current IE at AC 21A 690 V: 32 A
- ITH Thermal Current Enclosed: 40 A
- ITH Thermal Current Open: 50 A
- Mounting Method: Front mounting
- Material Housing: Plastic
- Wire Conductor Size Rigid Cable: 1.5-10 mm²
- Wire Conductor Size Flex Cable: 1.5-16 mm²
- Degree of Protection IP Front Side: IP20
- With Zero Off Position: Yes
- Mechanical Life Service Cycles: 200000 cycles
- Number of Switch Positions: 2
- Operating Temperature: -25-60 °C
- Dimensions (H x L x W): 63mm x 60mm x 45mm
- Weight: 0.5 kg
Key Features
- 3 pole design for effective load management.
- Rated for 32A operation at 690V.
- IP20 rated for front side protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Load management in manufacturing facilities
- Commercial: Power control in commercial buildings
- General: Any application requiring a reliable load break switch
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules.
Environmental Benefits
- Durable materials extend product life, reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 32A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable load management.
