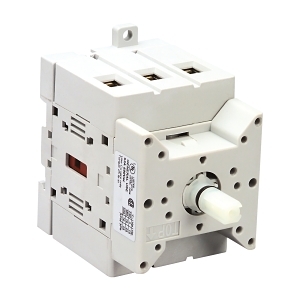

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 40A
Brand: NHP
SKU: LE7401753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Panel Mount Switch
Technical Specifications
- Number of Poles: 3
- Rated Operation Power at AC 3 400 V: 15 kW
- Rated Operation Current (Ie) at AC 21A 690 V: 40 A
- Rated Operation Current (Ie) at AC 1 690 V: 40 A
- Ithe Thermal Current (Enclosed): 50 A
- Ith Thermal Current (Open): 63 A
- Mounting Method: Front mounting
- Material Housing: Plastic
- Wire Conductor Size (Rigid Cable): 2.5-16 mm²
- Wire Conductor Size (Flex Cable): 2.5-25 mm²
- Degree of Protection: IP20
- With Zero Off Position: Yes
- Mechanical Life Service Cycles: 200000 cycles
- Number of Switch Positions: 2
- Operating Temperature: -25-60 °C
- Dimensions (H x L x W): 72mm x 74mm x 54mm
- Weight: 1.0 kg
Key Features
- 3-pole design for reliable load breaking.
- Rated for 40A operation with a robust plastic housing.
- IP20 protection suitable for front mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control and power distribution
- Commercial: Electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules and electrical installation.
Environmental Benefits
- Durable materials extend product life, reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 40A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
