56SW110-GY

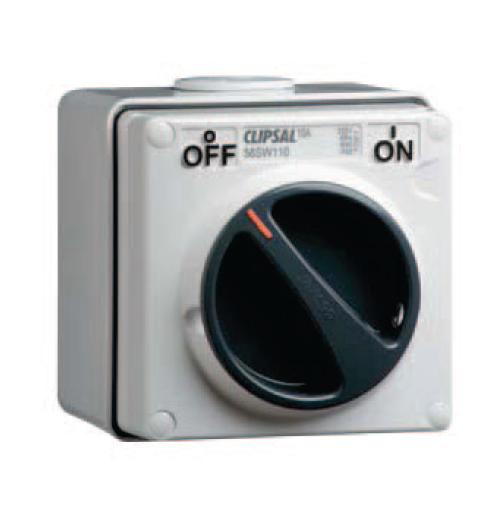

Surface Switches - IP66 250V 10A - Single Pole 1 Way 2 Terminal 30 Series Mechanism Grey


$53.10 List price: $70.50
+

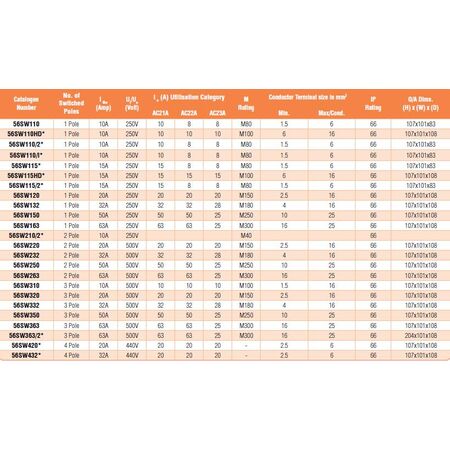

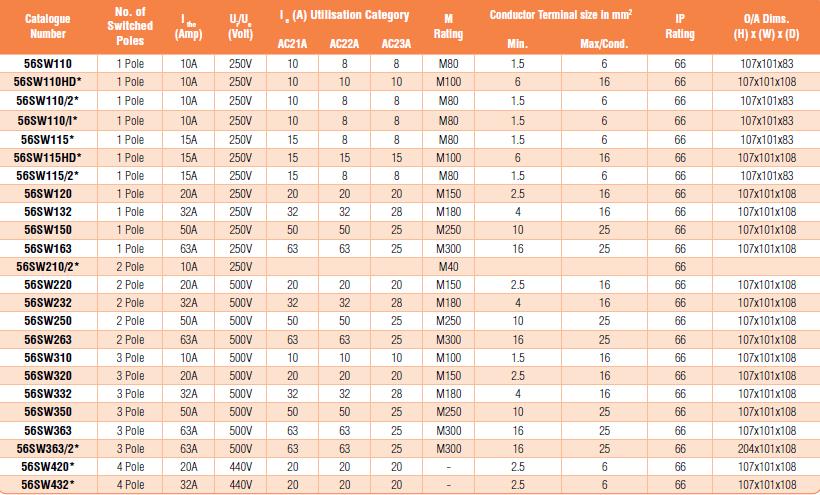

  • 56 Series Surface Switches are available from 250V, 10A to 500V 63A. They incorporate a positive, rotary switch action. ‘ON’ and ‘OFF’ positions are clearly marked and there is provision for two padlocks. Hole diameter is 8mm.
  • If locking is required in the ‘ON’ position, simply drill a hole where necessary.
  • To provide easier wiring of our 56 Series Three Pole 63A Switch, a deeper two gang enclosure and centrally mounted option (Cat. No. 56SW363/2), allows additional room for wiring associated with this application Earth and neutral connectors accommodating
  • 3 x 6mm2 cables are supplied with all products above 20A
  • All 63A switches come with the facility to fit auxiliary micro switch 56SWAUX15
