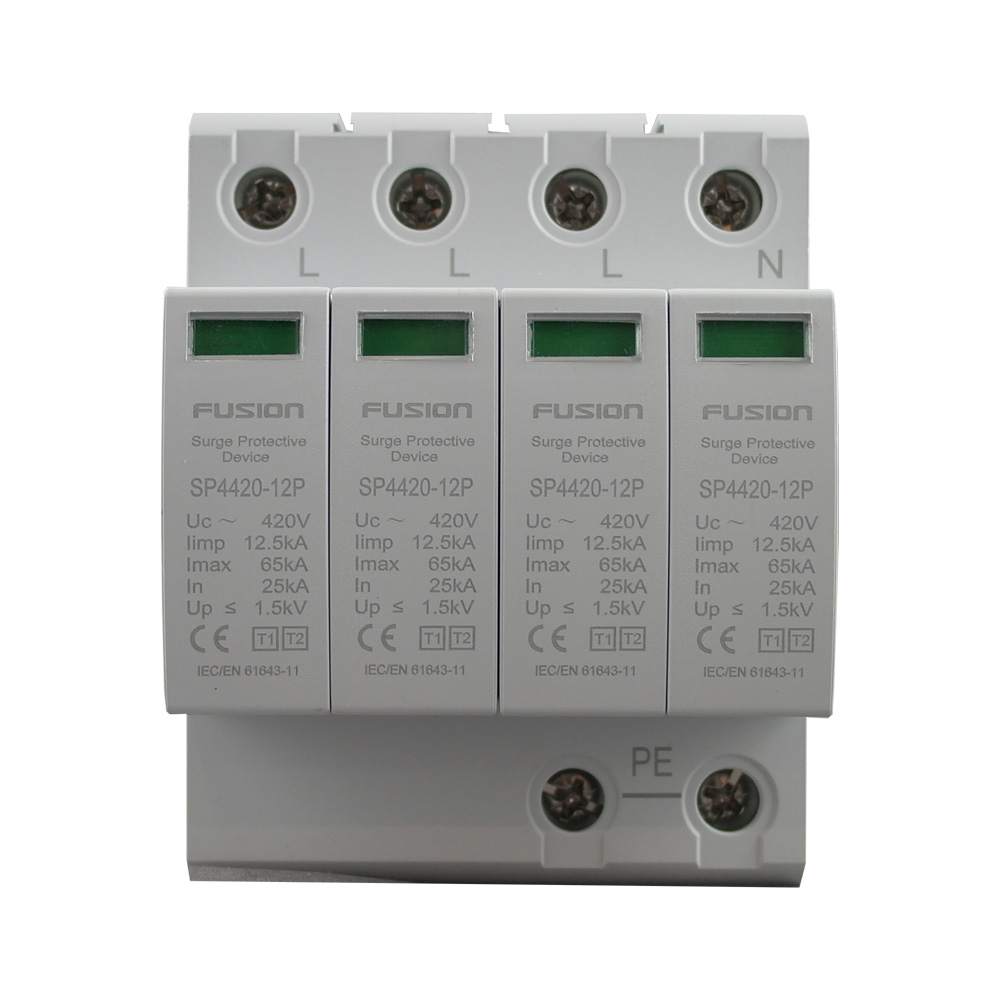

Product Name/Title: Surge Arrestor Type 1 + 2, 4 Pole 420V 12.5kA L-L-L-N-PE
Brand: Connected Switchgear
SKU: SP4420-12P
Alternatively Known As: Surge Protector, Surge Protection Device, Lightning Arrestor
Technical Specifications
- Product Code: SP4420-12P
- Voltage: 420V AC
- Poles: 4 Pole
- Configuration: L-L-L-N-PE connection
- I_{n}: 25kA, I_{imp}: 12.5kA, I_{max}: 65kA
- Class: 1+210/350us, 8/20us Waveform
- U_{p} ≤1.5kV
- Width: 72mm
- DIN Rail Mounting: 35mm
- Dimensions (H x L x W): 90mm x 35mm x 72mm
- Weight: 1.5 kg
Key Features
- Type 1 + Type 2 surge protection.
- 4 Pole Width with L-L-L-N-PE terminal connection.
- Easy installation with DIN rail mount.
- Fail-safe design with optional remote indicator.
- IP2X design for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety and compliance.
Applications
- Residential: Homes and apartments requiring surge protection.
- Commercial: Retail and office spaces needing reliable electrical safety.
- Industrial: Factories and facilities with high electrical demands.
Standards & Compliance
- Complies with IEC 61643.1 for surge protection devices.
Environmental Benefits
- Reduces electrical waste and enhances safety in electrical systems.
Warranty Information
5 Year Replacement Warranty on the Surge Arrestor 4P 420V.
Available Now
The Surge Arrestor Type 1 + 2, 4 Pole 420V 12.5kA is available now for immediate purchase. Ideal for residential, commercial, and industrial applications requiring surge protection.
