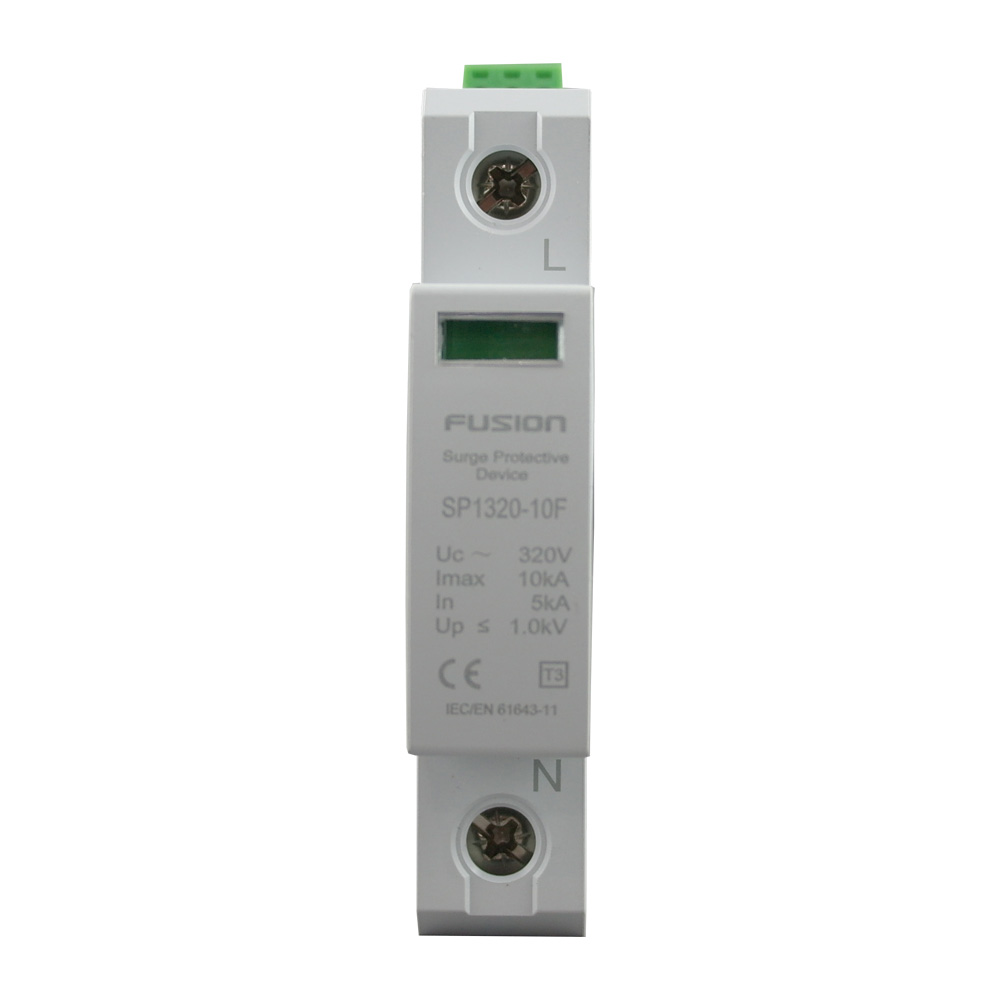

Product Name/Title: Surge Arrestor Type 3, 1 Pole 320V 10kA Fine L-N
Brand: Connected Switchgear
SKU: SP1320-10F
Alternatively Known As: Surge Protector, Surge Suppressor, Lightning Arrestor
- Product Code: SP1320-10F
- Voltage: 320V
- Power: AC
- Poles: 1P
- Configuration: L-N connection with Comms Port
- I_n: 5kA
- I_max: 10kA
- Class: 31.2/50us Waveform
- Width: 18mm
- U_p: ≤1.0kV
- DIN Rail Mount: 35mm
- Electrical System: TNC-S
- Dimensions (H x L x W): 90mm x 70mm x 18mm
- Weight: 0.5 kg
- Type 3, Fine L-N Terminal Connection with Comms Port
- 1 Pole Width
- Easy Installation
- DIN Rail Mount
- Fail Safe Design
- Optional Remote Indicator with 3 Pin NO/NC Contact
- IP2X Design
- Visual Indicator
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes and apartments
- Commercial: Retail and office spaces
- Industrial: Factories and manufacturing facilities
- Complies with IEC 61643.1 for surge protection devices.
- Protects electrical systems from damage, reducing waste and promoting longevity of devices.
5 Year Replacement Warranty on our Surge Arrestor 1P 320V.
The Surge Arrestor Type 3, 1 Pole 320V 10kA Fine L-N is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
