SPB465R

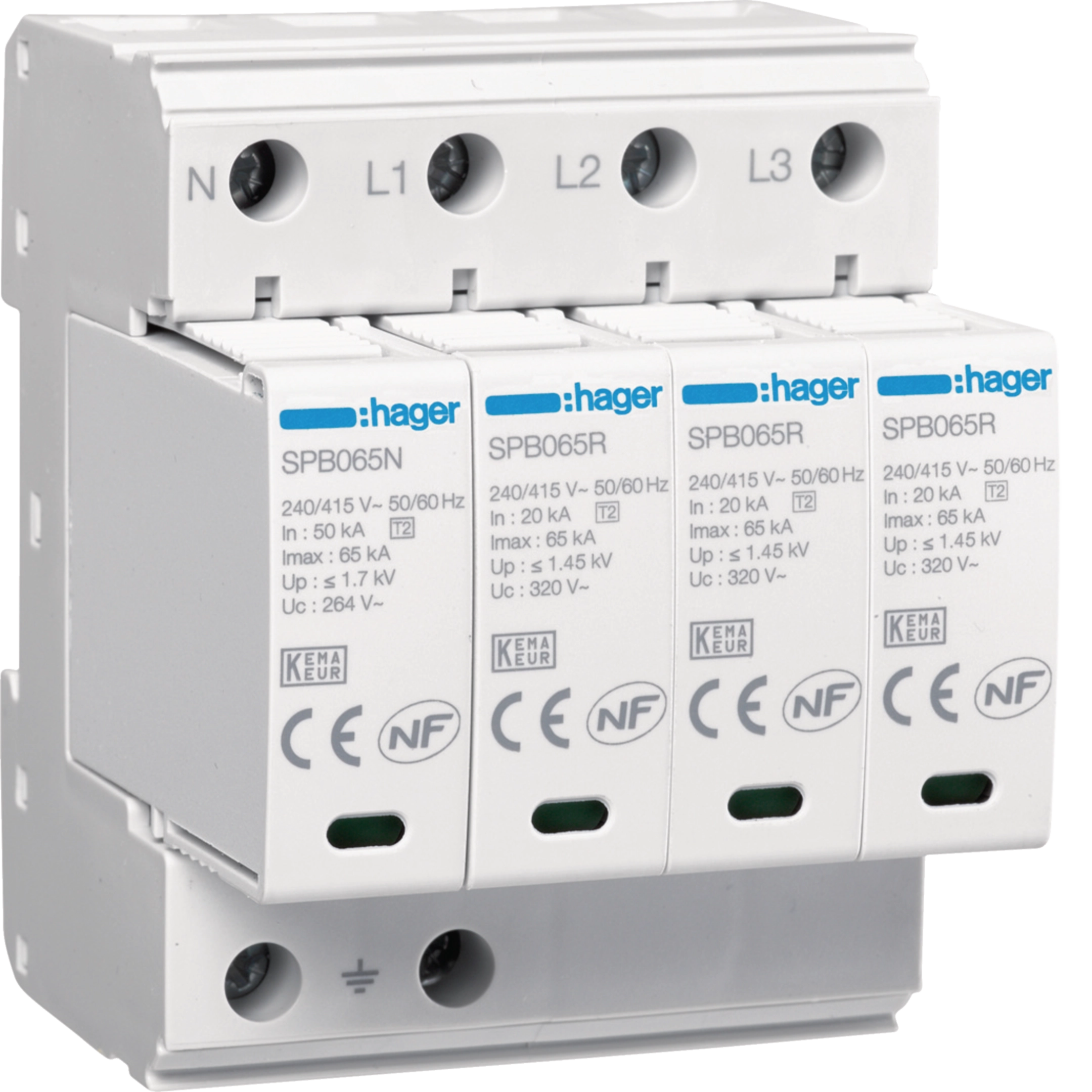

Surge Protection Device 4P T2 TNS/TT Uc 320V In 20kA Imax 65kA remote contact


$568.90 List price: $727.50
+

Weight: 1.000 kg

Product Name/Title: Surge Protection Device 4P T2 TNS/TT Uc 320V In 20kA Imax 65kA remote contact

Brand: Hager

SKU: SPB465R

Alternatively Known As: Surge Protector, Surge Suppressor, SPD, Surge Protection Device

Technical Specifications
  • Rated operational voltage Ue: 240 - 415 V
  • Voltage protection level Up: 1.45 kV
  • Max. overcurrent protection device: 160 A
  • Operating temperature: -40 - 80 °C
  • Network configuration: TN-S, TT
  • Frequency: 50 - 60 Hz
  • Dimensions (H x L x W): 99mm x 78mm x 72mm
  • Weight: 1.0 kg
Key Features
  • 4 modules for comprehensive surge protection.
  • Continuous operating voltage of 320V.
  • Nominal discharge current of 20kA.
  • Maximum discharge current (Imax) of 65kA.
  • Remote signaling contact for monitoring.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes and apartments
  • Commercial: Offices and retail spaces
  • Industrial: Factories and manufacturing facilities
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, reducing hazardous substances in electrical equipment.
  • Halogen-free materials contribute to safer disposal and recycling.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager Surge Protection Device 4P T2 TNS/TT Uc 320V is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
