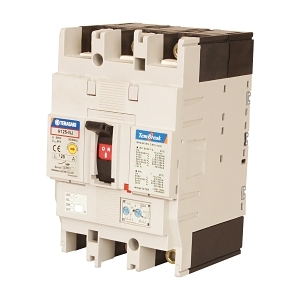

Product Name/Title: Terasaki TemBreak 2 MCCB 125 Frame 125kA 3P 125A Thermal Magnetic
Brand: NHP
SKU: H125NJ3125
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 125 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 80 kA
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 165mm x 151mm x 105mm
- Weight: 1 kg
Key Features
- Thermal/magnetic release for reliable protection.
- Adjustable thermal and magnetic trip curves.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak 2 MCCB 125 Frame 125kA 3P 125A Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
