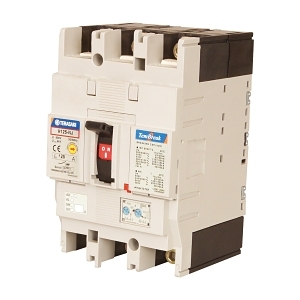

Product Name/Title: Terasaki TemBreak 2 MCCB 125 Frame 125kA 3P 50A Thermal Magnetic
Brand: NHP
SKU: H125NJ350
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 50 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 80 kA
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Dimensions (H x L x W): 165mm x 151mm x 105mm
- Weight: 1 kg
Key Features
- Thermal/magnetic release for reliable protection.
- Adjustable thermal and magnetic trip curves.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 125 Frame 125kA 3P 50A Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
Non-Returnable & Non-Cancellable
