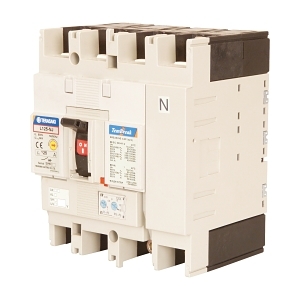

Product Name/Title: Terasaki TemBreak 2 MCCB 125 Frame 125kA 4P 32A Thermal Magnetic
Brand: NHP
SKU: H125NJ432
Alternatively Known As: MCCB, Thermal Magnetic Circuit Breaker, Power Circuit Breaker
Technical Specifications
- Rated Current: 32 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 80 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 20-32 A
- Instantaneous Protection Adjustment Range: 192-384 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Suitable for Isolation: Yes
- Rated Short Circuit Breaking Capacity (ICU): 20 kA
- Rated Short Circuit Breaking Capacity (ICS): 15 kA
- Rated Impulse Withstand Voltage: 8 kV
- Reverse Connection of Supply Possible: Yes
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Vibration Frequency Operational: 16.7 Hz
- Max Vibration Duration: 12 min
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 165mm x 151mm x 140mm
- Weight: 1.3 kg
Key Features
- Thermal/magnetic release for reliable protection.
- Adjustable thermal and magnetic trip curves.
- High short-circuit breaking capacity of 125 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak 2 MCCB 125 Frame 125kA 4P 32A Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
