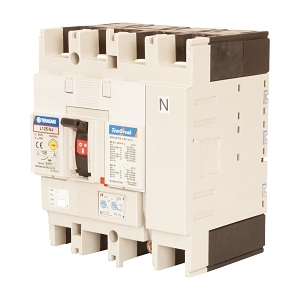

Product Name/Title: Terasaki TemBreak 2 MCCB 125 Frame 200kA 4P 20A Thermal Magnetic
Brand: NHP
SKU: L125NJ420
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 20 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 150 kA
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Dimensions (H x L x W): 165mm x 151mm x 140mm
- Weight: 3.2 kg
Key Features
- Thermal/magnetic release for reliable protection.
- 200 kA short circuit breaking capacity at 415V.
- Adjustable thermal and magnetic trip curves.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak 2 MCCB 125 Frame 200kA 4P 20A Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
Non-Returnable & Non-Cancellable
