L125PJ3125

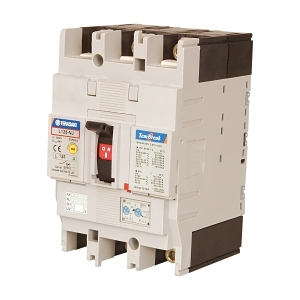

Terasaki TemBreak 2 MCCB 125 Frame 690V AC 70kA 3P 125A Thermal Magnetic


$1,750.60 List price: $2,324.60
+

Brand: NHP

Product Name/Title: Terasaki TemBreak 2 MCCB 125 Frame 690V AC 70kA 3P 125A Thermal Magnetic

Brand: NHP

SKU: L125PJ3125

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications
  • Rated Current: 125 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V AC
  • Rated Short Circuit Breaking Capacity: 70 kA
  • Rated Insulation Voltage: 800 V
  • Rated Frequency: 50-60 Hz
  • Electrical Life: 1000 cycles
  • Mechanical Life: 7000 cycles
  • Cable Cross Section Range: 1.5-35 mm²
  • Pollution Degree: 3
  • Rated Surrounding Temperature: 50 °C
  • Dimensions (H x L x W): 165mm x 127mm x 105mm
  • Weight: 2.4 kg
Key Features
  • Thermal/magnetic release for reliable protection.
  • Adjustable thermal and magnetic trip settings.
  • High short-circuit breaking capacity of 70 kA.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical panels in commercial buildings
  • General: Protection of electrical circuits in various applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Designed for high performance and reliability in various environmental conditions.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak 2 MCCB 125 Frame 690V AC 70kA 3P 125A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.

Non-Returnable & Non-Cancellable
