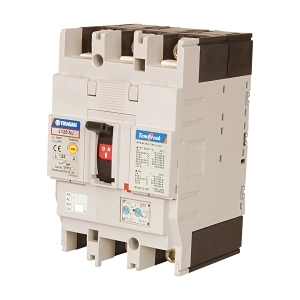

Product Name/Title: Terasaki TemBreak 2 MCCB 125 Frame 690V AC 70kA 3P 63A Thermal Magnetic
Brand: NHP
SKU: L125PJ363
Alternatively Known As: MCCB, Thermal Magnetic Circuit Breaker, Circuit Breaker 63A
- Rated Current: 63 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V AC
- Rated Short Circuit Breaking Capacity: 70 kA
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Mechanical Life: 7000 cycles
- Electrical Life: 1000 cycles
- Power Loss: 19.8 W
- Dimensions (H x L x W): 165mm x 127mm x 105mm
- Weight: 2.4 kg
- Thermal/magnetic release for reliable protection.
- Adjustable thermal and magnetic trip curves.
- Rated short circuit breaking capacity of 70 kA.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
- Complies with relevant Australian standards for electrical safety.
- Designed for high efficiency and reliability in electrical systems.
Standard warranty applies.
The Terasaki TemBreak 2 MCCB 125 Frame 690V AC 70kA 3P 63A Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
