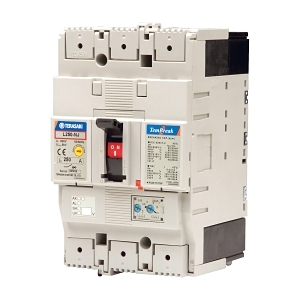

Product Name/Title: Terasaki TemBreak 2 MCCB 160 Frame 200kA 3P 160A Thermal Magnetic
Brand: NHP
SKU: L160NJ3160
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker
- Rated Current: 160 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 150 kA
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 151mm x 105mm
- Weight: 2.4 kg
- Thermal/magnetic release for reliable protection.
- Adjustable thermal and magnetic trip curves.
- High short-circuit breaking capacity of 200 kA.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
- Complies with relevant Australian standards for electrical safety.
- Designed for high performance and reliability in various environmental conditions.
Standard warranty applies, please check with the manufacturer for details.
The Terasaki TemBreak 2 MCCB 160 Frame 200kA 3P 160A Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
