Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 125A Electronic

Trade Discount 25%

SKU: H250NE3125

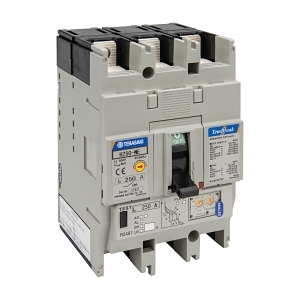

Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 125A Electronic

$4,793.40 List price: $6,365.10

+ −

30 Days Return Delivery Options

Weight: 2.500 kg

Description

Product Name/Title: Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 125A Electronic

Brand: NHP

SKU: H250NE3125

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 125A

Technical Specifications

Rated Current: 125 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 125 kA
Rated Service Short Circuit Breaking Capacity: 85 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSI
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 50-125 A
Instantaneous Protection Adjustment Range: 750-1500 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 20 kA
Rated Short Circuit Breaking Capacity (ICS): 15 kA
Short Time Protection Adjustment Range: 50-1250 A
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 10000 cycles
Mechanical Life: 30000 cycles
Pollution Degree: 3
Rated Surrounding Temperature Without Derating: 45 °C
Maximum Operating Temperature: 70 °C
Storage Temperature: -10-70 °C
Allowable Relative Humidity: 0-85 %
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 165mm x 127mm x 105mm
Weight: 2.5 kg

Key Features

Electronic release trip unit for precise protection.
High short-circuit breaking capacity of 125 kA.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
Residential: Electrical safety in home installations

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high performance and reliability, reducing the risk of electrical failures.

Warranty Information

Standard warranty applies.

Available Now

The Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 125A Electronic is available now for immediate purchase. Ideal for industrial and residential electrical safety applications.
