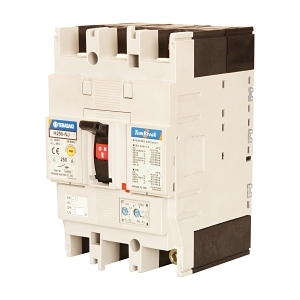

Product Name/Title: Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 250A Thermal Magnetic
Brand: NHP
SKU: H250NJ3250
Alternatively Known As: MCCB, Thermal Magnetic Circuit Breaker, Power Switching Circuit Breaker
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 85 kA
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Electrical Life: 10,000 cycles
- Mechanical Life: 30,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Dimensions (H x L x W): 165mm x 127mm x 105mm
- Weight: 2.5 kg
Key Features
- Thermal/magnetic release for reliable protection.
- Adjustable thermal and magnetic trip curves.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Designed for energy efficiency and reduced power loss.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 250A Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
