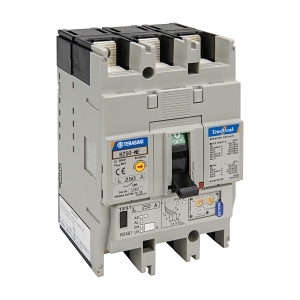

Product Name/Title: Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 40A Electronic
Brand: NHP
SKU: H250NE340
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 40A
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 85 kA
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 30,000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Dimensions (H x L x W): 165mm x 127mm x 105mm
- Weight: 2.5 kg
Key Features
- Electronic release trip unit for precise protection.
- 125 kA short circuit breaking capacity at 415 V.
- Long time overload protection adjustment range of 16-40 A.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in demanding environments.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 40A Electronic is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
