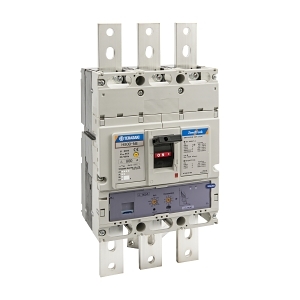

Product Name/Title: Terasaki TemBreak 2 MCCB 800 Frame 125kA 3P 630A Electronic
Brand: NHP
SKU: H800NE3630
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 630A
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 94 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 252-630 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 25 kA
- Rated Short Circuit Breaking Capacity (ICS): 20 kA
- Short Time Withstand Current (ICW): 10 kA
- Short Time Protection Adjustment Range: 630-6300 A
- Rated Impulse Withstand Voltage: 8 kV
- AC Power Loss per Pole at In: 63.33 W
- Electrical Life at Un in Service Cycles: 4000 cycles
- Mechanical Life Service Cycles: 10000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Vibration Frequency Operational: 16.7 Hz
- Max Vibration Duration: 12 min
- Pollution Degree: 3
- Rated Surrounding Temperature without Derating: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude before Derating: 2000 m
- Dimensions (H x L x W): 433mm x 182mm x 210mm
- Weight: 13.3 kg
Key Features
- Electronic release trip unit for precise protection.
- High short-circuit breaking capacity of 125 kA.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Large buildings and facilities
- General: Electrical protection in various applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak 2 MCCB 800 Frame 125kA 3P 630A Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
