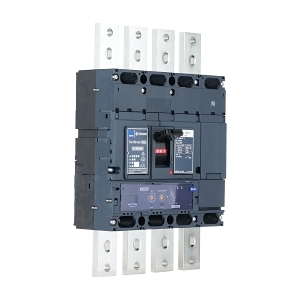

Product Name/Title: Terasaki TemBreak PRO MCCB 1000 Frame 50kA 4P 1000A Basic Electronic
Brand: NHP
SKU: B1000N41000BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1000A
Technical Specifications
- Rated Current: 1000 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 38 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 400-1000 A
- Instantaneous Protection Adjustment Range: 2500-10000 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 20 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 320 W
- Mechanical Life: 10000 cycles
- Dimensions (H x L x W): 433mm x 145mm x 280mm
- Weight: 14.8 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 50 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Terasaki TemBreak PRO MCCB 1000 Frame 50kA 4P 1000A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
