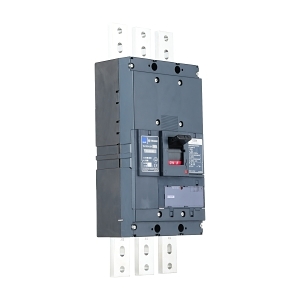

Product Name/Title: Terasaki TemBreak PRO MCCB 1250 Frame 3P 1250A Non Auto Switch
Brand: NHP
SKU: B1250D31250NN
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1250A
Technical Specifications
- Rated Current: 1250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Short Time Withstand Current: 15 kA
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 270 W
- Mechanical Life: 5000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Operating Temperature: 70 °C
- Allowable Relative Humidity: 0-85 %
- Dimensions (H x L x W): 530mm x 171mm x 210mm
- Weight: 18.2 kg
Key Features
- Rated current of 1250 A with a 3-pole configuration.
- Non auto-switch type of protection trip unit.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance in various environmental conditions.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak PRO MCCB 1250 Frame 3P 1250A Non Auto Switch is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
