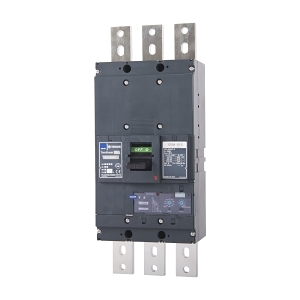

Product Name/Title: Terasaki TemBreak PRO MCCB 1250 Frame 85kA 4P 1250A Basic Electronic
Brand: NHP
SKU: B1250HL41250BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1250A
Technical Specifications
- Rated Current: 1250 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 100 kA
- Rated Service Short Circuit Breaking Capacity: 75 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 500-1250 A
- Instantaneous Protection Adjustment Range: 3125-15000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity at 690 V AC: 45 kA
- Short Time Withstand Current: 15 kA
- Power Loss: 270 W
- Mechanical Life: 5000 cycles
- Electrical Life: 4000 cycles
- Dimensions (H x L x W): 530mm x 171mm x 280mm
- Weight: 25 kg
Key Features
- 1250A rated current with electronic release trip unit.
- High short circuit breaking capacity of 100 kA.
- Suitable for isolation and front side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Large facilities requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide temperature range and high humidity.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak PRO MCCB 1250 Frame 85kA 4P 1250A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
