B160P33100TM

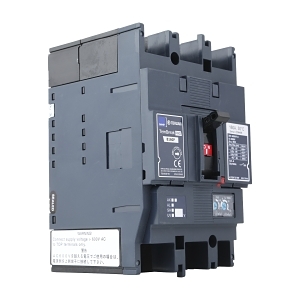

Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 100A Adj. Thermal Adj. Magnetic


$1,086.50 List price: $1,442.70
+

Weight: 1.000 kg

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 100A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: B160P33100TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 100A

Technical Specifications
  • Rated Current: 100 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 125 kA
  • Rated Service Short Circuit Breaking Capacity: 80 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Adjustable thermal, adjustable magnetic
  • Frame Size Rating: 160 A
  • Long Time Overload Protection Adjustment Range: 63-100 A
  • Instantaneous Protection Adjustment Range: 600-1200 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 800 V
  • Rated Short Circuit Breaking Capacity: 20 kA at 690 V AC
  • Rated Impulse Withstand Voltage: 8 kV
  • Mechanical Life: 20000 cycles
  • Electrical Life: 10000 cycles
  • Cable Cross Section Range: 35-185 mm²
  • Dimensions (H x L x W): 165mm x 151mm x 105mm
  • Weight: 1 kg
Key Features
  • Adjustable thermal and magnetic trip settings for customized protection.
  • High breaking capacity of 125 kA for reliable circuit protection.
  • Suitable for isolation and front-side connection.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical systems in commercial buildings
  • General: Protection of electrical circuits in various applications
Standards & Compliance
  • Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
  • Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 100A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
