B160P33125TM

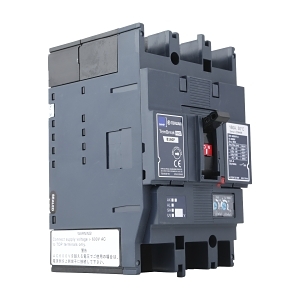

Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 125A Adj. Thermal Adj. Magnetic


$1,295.30 List price: $1,720.00
+

Weight: 1.000 kg

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 125A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: B160P33125TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 125A

Technical Specifications
  • Rated Current: 125 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 125 kA
  • Rated Service Short Circuit Breaking Capacity: 80 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Adjustable thermal, adjustable magnetic
  • Frame Size Rating: 160 A
  • Long Time Overload Protection Adjustment Range: 80-125 A
  • Instantaneous Protection Adjustment Range: 750-1500 A
  • Rated Insulation Voltage: 800 V
  • Rated Short Circuit Breaking Capacity at 690 V: 20 kA
  • Rated Impulse Withstand Voltage: 8 kV
  • Mechanical Life: 20,000 cycles
  • Electrical Life: 10,000 cycles
  • Dimensions (H x L x W): 165mm x 151mm x 105mm
  • Weight: 1 kg
Key Features
  • Adjustable thermal and magnetic trip settings for customized protection.
  • High short-circuit breaking capacity of 125 kA at 415 V.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical systems in commercial buildings
  • General: Protection of electrical circuits in various applications
Environmental Benefits
  • Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 125A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable
