Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 160A Adj. Thermal Adj. Magnetic

Trade Discount 25%

SKU: B160P33160TM

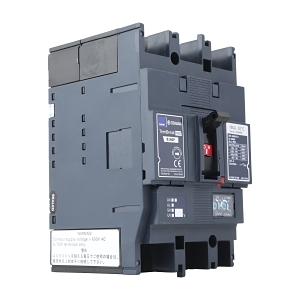

Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 160A Adj. Thermal Adj. Magnetic

$1,462.80 List price: $1,942.40

+ −

30 Days Return Delivery Options

Weight: 1.000 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 160A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: B160P33160TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 160A

Technical Specifications

Rated Current: 160 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 125 kA
Rated Service Short Circuit Breaking Capacity: 80 kA
Type of Protection Trip Unit: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Rated Insulation Voltage: 800 V
Rated Frequency: 50-60 Hz
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Cable Cross Section Range: 35-185 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 165mm x 151mm x 105mm
Weight: 1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 125 kA at 415 V for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 160A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable
