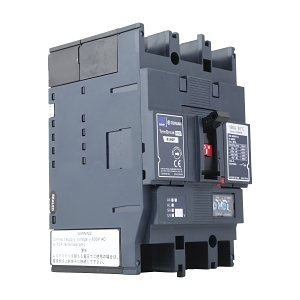

Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 32A Adj. Thermal Adj. Magnetic

$1,002.70 List price: $1,331.50

+ −

30 Days Return Delivery Options

Weight: 1.000 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 32A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: B160P3332TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 32A

Technical Specifications

Rated Current: 32 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 125 kA
Rated Service Short Circuit Breaking Capacity: 80 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 20-32 A
Instantaneous Protection Adjustment Range: 192-384 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 20 kA
Rated Short Circuit Breaking Capacity (ICS): 15 kA
Rated Impulse Withstand Voltage: 8 kV
Over Voltage Category: IV
Power Loss: 53.42 W
Mechanical Life: 20,000 cycles
Electrical Life: 10,000 cycles
Cable Cross Section Range: 35-185 mm²
Dimensions (H x L x W): 165mm x 151mm x 105mm
Weight: 1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 125 kA for reliable short circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for electrical safety and performance.

Environmental Benefits

Designed for high efficiency, reducing energy loss and operational costs.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 32A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.

Non-Returnable & Non-Cancellable
