Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 125A Adj. Thermal Adj. Magnetic

Trade Discount 25%

SKU: B160P34125TM

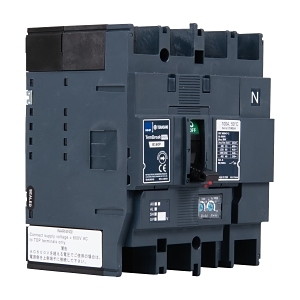

Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 125A Adj. Thermal Adj. Magnetic

$1,754.30 List price: $2,329.40

+ −

30 Days Return Delivery Options

Brand: NHP

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 125A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: B160P34125TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 125A

Technical Specifications

Rated Current: 125 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 125 kA
Rated Service Short Circuit Breaking Capacity: 80 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 80-125 A
Instantaneous Protection Adjustment Range: 750-1500 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 20 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 20,000 cycles
Electrical Life: 10,000 cycles
Dimensions (H x L x W): 165mm x 151mm x 140mm
Weight: 1.3 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High short-circuit breaking capacity of 125 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
Electrical: Suitable for use in electrical panels and switchboards

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 125A is available now for immediate purchase. Ideal for industrial and electrical applications.

Non-Returnable & Non-Cancellable
