Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 32A Adj. Thermal Adj. Magnetic

Trade Discount 25%

SKU: B160P3432TM

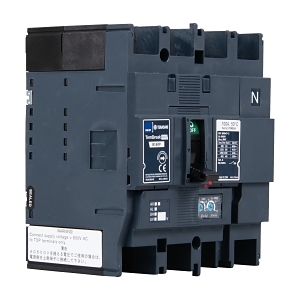

Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 32A Adj. Thermal Adj. Magnetic

$1,337.20 List price: $1,775.60

+ −

30 Days Return Delivery Options

Brand: NHP

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 32A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: B160P3432TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 32 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 125 kA
Rated Service Short Circuit Breaking Capacity: 80 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 20-32 A
Instantaneous Protection Adjustment Range: 192-384 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity at 690 V AC: 20 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss per Pole: 17.81 W
Mechanical Life: 20000 cycles
Max Vibration Acceleration: 19 m/s²
Cable Cross Section Range: 35-185 mm²
Dimensions (H x L x W): 165mm x 151mm x 140mm
Weight: 1.3 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 125 kA for reliable short circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for circuit breakers.

Environmental Benefits

Designed for high efficiency, reducing energy loss during operation.

Warranty Information

Standard warranty as per manufacturer’s policy.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 32A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.

Non-Returnable & Non-Cancellable
