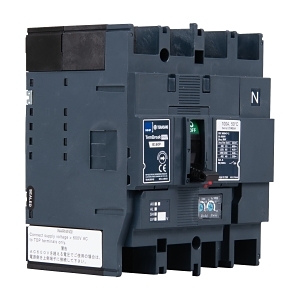

Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 63A Adj. Thermal Adj. Magnetic

$1,337.20 List price: $1,775.60

+ −

30 Days Return Delivery Options

Weight: 1.300 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 63A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: B160P3463TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 63 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 125 kA
Rated Service Short Circuit Breaking Capacity: 80 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 40-63 A
Instantaneous Protection Adjustment Range: 378-756 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity at 690 V: 20 kA
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 20,000 cycles
Electrical Life: 10,000 cycles
Cable Cross Section Range: 35-185 mm²
Dimensions (H x L x W): 165mm x 151mm x 140mm
Weight: 1.3 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 125 kA at 415 V for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for energy efficiency, reducing power loss during operation.

Warranty Information

Standard warranty as per manufacturer’s policy.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 125kA 4P 63A is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.
