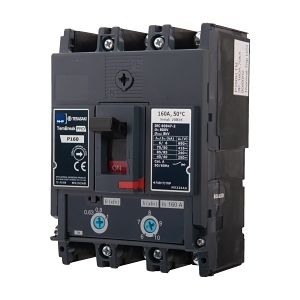

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 200kA 3P 63A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: B160R3363TM
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
- Rated Current: 63 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 135 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 40-63 A
- Instantaneous Protection Adjustment Range: 378-756 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 25 kA
- Rated Short Circuit Breaking Capacity (ICS): 20 kA
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Dimensions (H x L x W): 165mm x 151mm x 105mm
- Weight: 1 kg
- Adjustable thermal and magnetic trip settings for customized protection.
- High short-circuit breaking capacity of 200 kA at 415 V.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
- Designed for energy efficiency, reducing power loss during operation.
1 year warranty against manufacturing defects.
The Terasaki TemBreak PRO MCCB 160 Frame 200kA 3P 63A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
