Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 160 Frame 200kA 4P 20A Adj. Thermal Adj. Magnetic

Trade Discount 25%

SKU: B160R3420TM

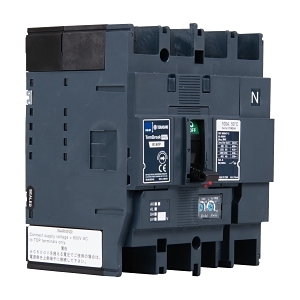

Terasaki TemBreak PRO MCCB 160 Frame 200kA 4P 20A Adj. Thermal Adj. Magnetic

$1,838.50 List price: $2,441.30

+ −

30 Days Return Delivery Options

Weight: 1.300 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 200kA 4P 20A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: B160R3420TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 20 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 200 kA
Rated Service Short Circuit Breaking Capacity: 135 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 12.5-20 A
Instantaneous Protection Adjustment Range: 120-240 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 25 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 41.19 W
Mechanical Life: 20000 cycles
Cable Cross Section Range: 35-185 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 165mm x 151mm x 140mm
Weight: 1.3 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High short-circuit breaking capacity of 200 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for electrical equipment safety.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

Standard warranty as per manufacturer’s policy.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 200kA 4P 20A is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.
