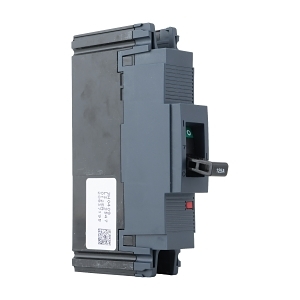

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 40A Fix. Thermal Fix. Magnetic
Brand: NHP
SKU: A160E1140FF
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 1
- Max Rated Operation Voltage: 240 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 13 kA
- Rated Insulation Voltage: 690 V
- Rated Frequency: 50-60 Hz
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 1.5-35 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Dimensions (H x L x W): 130mm x 95mm x 25mm
- Weight: 0.3 kg
Key Features
- Thermal/magnetic release for reliable circuit protection.
- Fixed thermal and magnetic trip curve for enhanced safety.
- Rated short circuit breaking capacity of 25 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 40A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
