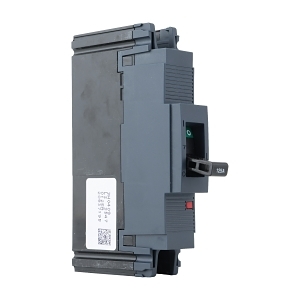

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 63A Fix. Thermal Fix. Magnetic
Brand: NHP
SKU: A160E1163FF
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 63 A
- Number of Poles: 1
- Max Rated Operation Voltage: 240 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 13 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Power Loss: 9.8 W
- Cable Cross Section Range: 1.5-35 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 130mm x 95mm x 25mm
- Weight: 0.3 kg
Key Features
- Thermal/magnetic release for reliable protection.
- Fixed thermal and magnetic trip curve.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 63A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
