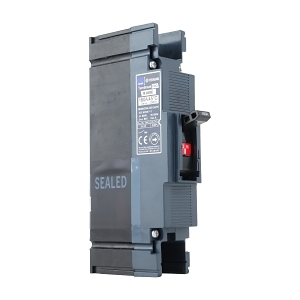

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 160A Fix. Thermal Fix. Magnetic
Brand: NHP
SKU: B160E31160FF
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 160A
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 1
- Max Rated Operation Voltage: 250 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 13 kA
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 35mm
- Weight: 0.5 kg
Key Features
- Thermal/magnetic release for reliable protection.
- Fixed thermal and magnetic trip curves.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- Residential: Electrical safety in home installations
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for long service life, reducing waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 160A is available now for immediate purchase. Ideal for industrial and residential electrical safety applications.
