Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 160A Adj. Therm. Adj. Mag.

Trade Discount 25%

SKU: P160F23160TM

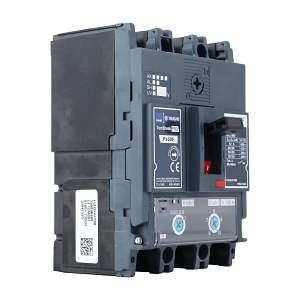

Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 160A Adj. Therm. Adj. Mag.

$583.00 List price: $774.10

+ −

30 Days Return Delivery Options

Weight: 1.000 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 160A Adj. Therm. Adj. Mag.

Brand: NHP

SKU: P160F23160TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 160A

Technical Specifications

Rated Current: 160 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection Trip Unit: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Long Time Overload Protection Adjustment Range: 100-160 A
Instantaneous Protection Adjustment Range: 960-1600 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 6 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 42.3 W
Mechanical Life: 50000 cycles
Electrical Life: 30000 cycles
Cable Cross Section Range: 1.5-70 mm²
Dimensions (H x L x W): 130mm x 95.5mm x 90mm
Weight: 1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 36 kA for reliable short circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures and humidity levels.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 160A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
