Making Trade Life Easy!

Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 160A Basic Electronic with GF

Trade Discount 25%

SKU: P160F23160BEG

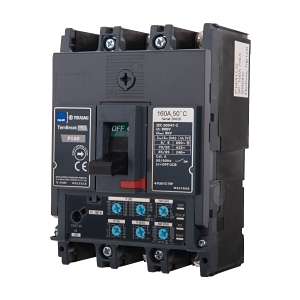

Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 160A Basic Electronic with GF

$1,643.10 List price: $2,181.90

+ −

30 Days Return Delivery Options

Weight: 1.000 kg

Description

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 160A Basic Electronic with GF

Brand: NHP

SKU: P160F23160BEG

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 160A

Technical Specifications

Rated Current: 160 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Trip Curve: LSIG
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 6 kA
Rated Short Circuit Breaking Capacity (ICS): 6 kA
Rated Impulse Withstand Voltage: 8 kV
Over Voltage Category: IV
Electrical Life: 30,000 cycles
Mechanical Life: 50,000 cycles
Cable Cross Section Range: 1.5-70 mm²
Dimensions (H x L x W): 130mm x 95.5mm x 90mm
Weight: 1 kg

Key Features

Electronic release trip unit for precise protection.
Integrated earth fault protection.
Long time overload protection adjustment range of 58-160 A.
Short time protection adjustment range of 87-1600 A.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures and humidity levels.

Warranty Information

Standard warranty applies, please check with the manufacturer for specific terms.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 160A Basic Electronic with GF is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
