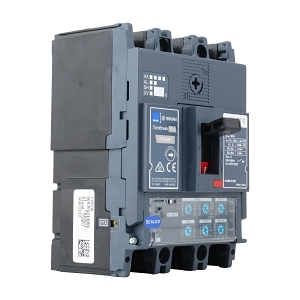

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 40A Basic Electronic
Brand: NHP
SKU: P160F2340BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 40A
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 14.7-40 A
- Instantaneous Protection Adjustment Range: 120-600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 6 kA
- Short Time Protection Adjustment Range: 22.1-400 A
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- AC Power Loss per Pole: 0.6 W
- Electrical Life: 30,000 cycles
- Mechanical Life: 50,000 cycles
- Cable Cross Section Range: 1.5-70 mm²
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Electronic release trip unit for precise protection.
- Rated short circuit breaking capacity of 36 kA.
- Suitable for isolation and front side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 40A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
