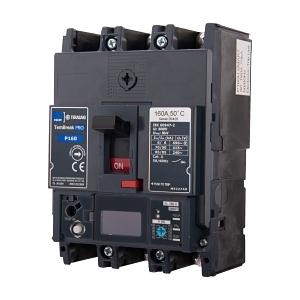

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 40A Smart Electronic
Brand: NHP
SKU: P160F2340SE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 40A, Smart MCCB
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 36 kA
- Trip Curve: LSIG
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 16-40 A
- Instantaneous Protection Adjustment Range: 120-600 A
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Integrated Communication Function: Yes
- Mechanical Life: 50,000 cycles
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated earth fault protection and energy metering function.
- Modbus TCP communication capability for smart monitoring.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- Electrical: Suitable for use in electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces power loss and enhances system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 40A Smart Electronic is available now for immediate purchase. Ideal for industrial and electrical applications.
Non-Returnable & Non-Cancellable
